Product Summary

The OP10EY dual matched instrumentation operational amplifier consists of two independent monolithic high performance operational amplifiers in a single 14-pin dual in line package. Tight matching of critical parameters is provided between channels of the dual operational amplifier. The excellent specifications of the individual OP10EY and tight matching over temperature enable construction of high performance instrumentation amplifiers. The designer can achieve the guaranteed specifications because the common package eliminates temperature differentials which occur in designs using separately housed amplifiers.

Parametrics

OP10EY absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Differential Input Voltage: ±30V; (3)Input Voltage: ±22V; (4)Output Short Circuit Duration: indefinite; (5)Storage Temperature Range: -65℃ to 150℃.

Features

OP10EY features: (1)Extremely Tight Matching; (2)Excellent individual amplifier parameters; (3)Offset voltage match: 0.18mV Max; (4)Offset Voltage Match vs Temp: 0.8μV/℃ Max; (5)common mode rejection match: 114dB; (6)power supply rejection match: 100dB; (7)Bias current match: 3.0nA Max; (8)Low noise: 0.6μVp-p Max; (9)Low bias current: 3.0nA; (10)Excellent channel separation: 126dB.

Diagrams

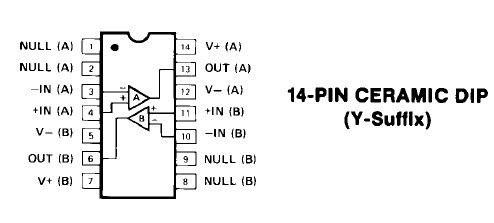

OP10EY pin connections
