DAC80P-CBI-V

Product Summary

This monolithic digital-to-analog converter DAC80P-CBI-V is pin-forpin equivalent to the industry standard DAC80 first introduced by Burr-Brown. Its single-chip design includes the output amplifier and provides a highly stable reference capable of supplying up to 2.5mA to an external load without degradation of D/A performance. The DAC80P-CBI-V uses proven circuit techniques to provide accurate and reliable performance over temperature and power supply variations. The use of a buried zener diode as the basis for the internal reference contributes to the high stability and low noise of the DAC80P-CBI-V. Advanced methods of laser trimming result in precision output current and output amplifier feedback resistors, as well as low integral and differential linearity errors. Innovative circuit design enables the DAC80P-CBI-V to operate at supply voltages as low as ±11.4V with no loss in performance or accuracy over any range of output voltage. The lower power dissipation of this 118-mil by 121-mil chip results in higher reliability and greater long term stability.

Parametrics

DAC80P-CBI-V absolute maximum ratings: (1)+VCC to Common: 0V to +18V; (2)–VCC to Common: 0V to –18; (3)Digital Data Inputs to Common: –1V to +18V; (4)Reference Output to Common: ±VCC; (5)Reference Input to Common: ±VCC; (6)Bipolar Offset to Common: ±VCC; (7)10V Range R to Common: ±VCC; (8)20V Range R to Common: ±VCC; (9)External Voltage to DAC Output: –5V to +5V; (10)Lead Temperature (soldering, 10s): +300℃; (11)Max Junction Temperature: 165℃; (12)Thermal Resistance, θJA: Plastic DIP: 100℃/W; (13)Ceramic DIP: 65℃/W.

Features

DAC80P-CBI-V features: (1)Industry standard pinout; (2)Full ±10V swing with VCC = ±12VDC; (3)Digital inputs are TTL- and CMOS-Compatible; (4)Guaranteed specifications with ±12V and ±15V supplies; (5)±1/2LSB maximum nonlinearity: 0℃ to +70℃; (6)Settling time: 4ms max to ±0.01% of FulScale; (7)Guaranteed monotonicity: 0℃ to +70℃; (8)Two package options: Hermetic sidebrazed ceramic and low-cost molded plastic.

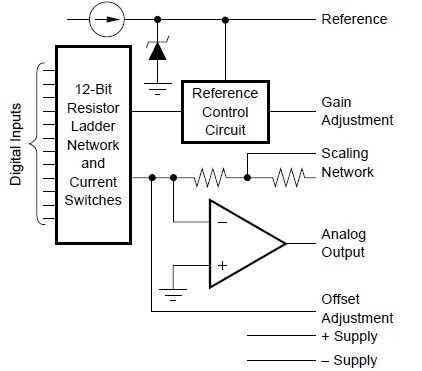

Diagrams
