TMS320DM642AZDK7

Video/Imaging Fixed-Point, Digital Signal Processor, BGA, Eight 32-Bit Instructions, Flexible PLL Clock Generator

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.00~12.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.00~12.00

PartNumber:: TMS320DM642AZDK7

Brand:: Texas Instruments - TI | Pack: BGA | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ma's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-07

From Other Seller

Part Number:TMS320DM642AZDK7
US $10.00 - 12.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

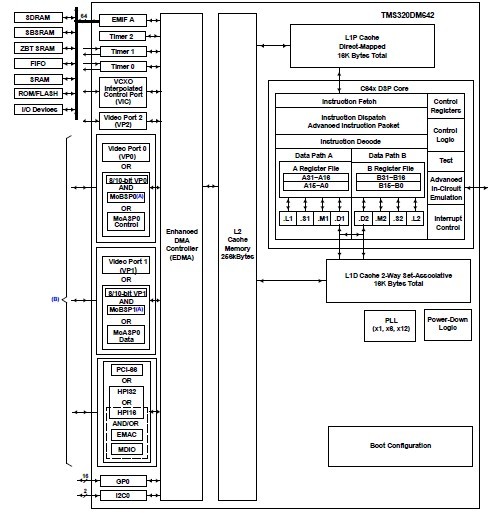

The TMS320DM642AZDK7 DSP is the highest-performance fixed-point DSP generation in the TMS320C6000 DSP platform. The TMS320DM642AZDK7 device is based on the second generation high-performance, advanced VelociTI. very-long-instruction-word VLIW) architecture (VelociTI.2.) developed by Texas Instruments (TI), making the TMS320DM642AZDK7 an excellent choice for digital media applications. The TMS320DM642AZDK7 is a code-compatible member of the C6000 DSP platform.

Parametrics

TMS320DM642AZDK7 absolute maximum ratings: (1)Supply voltage ranges: CVDD: -0.3 V to 1.8 V; DVDD: -0.3 V to 4 V; (2)Input voltage ranges: (except PCI), VI: -0.3 V to 4 V; (PCI), VIP: -0.5 V to DVDD + 0.5 V; (3)Output voltage ranges: (except PCI), VO -0.3 V to 4 V; (PCI), VOP: -0.5 V to DVDD + 0.5 V; (4)Operating case temperature ranges, TC: (default) 0℃ to 90℃; (A version) [A-500, A-600]: -40℃ to 105℃; (5)Storage temperature range, Tstg: -65℃ to 150℃; (6)Package Temperature Cycling: Temperature Range -40℃ to 125℃; Number of Cycles 500.

Features

TMS320DM642AZDK7 features: (1)High-Performance Digital Media Processor; (2)Instruction Set Features; (3)Endianess: Little Endian, Big Endian; (4)Management Data Input/Output (MDIO); (5)Host-Port Interface (HPI) [32-/16-Bit]; (6)Inter-Integrated Circuit (I2C Bus.); (7)Two Multichannel Buffered Serial Ports; (8)Three 32-Bit General-Purpose Timers; (9)Sixteen General-Purpose I/O (GPIO) Pins; (10)Flexible PLL Clock Generator; (11)0.13-μm/6-Level Cu Metal Process (CMOS); (12)3.3-V I/O, 1.2-V Internal (-500); (13)3.3-V I/O, 1.4-V Internal (A-500, A-600, -600, -720).
