AD574KD

Complete 12-Bit A/D Converter, CDIP, 35 μs Maximum Conversion Time, 825 mW Power Dissipation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $15.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $15.00~20.00

PartNumber:: AD574KD

Brand:: Analog Devices - ADI | Pack: CDIP | D/C: 03+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ma's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-06

From Other Seller

Part Number:AD574KD
US $15.00 - 20.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

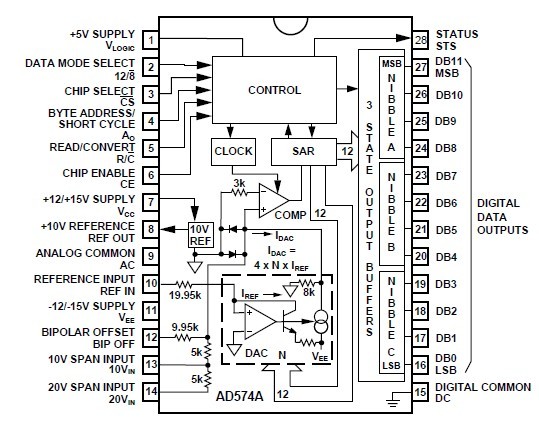

The AD574KD is a complete 12-bit successive-approximation analog-to-digital converter with 3-state output buffer circuitry for direct interface to an 8- or 16-bit microprocessor bus. A high precision voltage reference and clock are included on-chip, and the circuit guarantees full-rated performance without external circuitry or clock signals. The AD574KD is available in six different grades. The AD574KDJ, K, and L grades are specified for operation over the 0℃ to +70℃ temperature range. The AD574KDS, T, and U are specified for the -55℃ to +125℃ range. All grades are available in a 28-pin hermetically-sealed ceramic DIP. Also, the J, K, and L grades are available in a 28-pin plastic DIP and PLCC, and the J and K grades are available in ceramic LCC.

Parametrics

AD574KD absolute maximum ratings: (1)VCC to Digital Common: 0 V to +16.5 V; (2)VEE to Digital Common: 0 V to -16.5 V; (3)VLOGIC to Digital Common: 0 V to +7 V; (4)Analog Common to Digital Common : ±1 V; (5)Control Inputs (CE, CS, AO 12/8, R/C) to Digital Common: –0.5 V to VLOGIC + 0.5 V; (6)Analog Inputs (REF IN, BIP OFF, 10 VIN) to; (7)Analog Common: VEE to VCC; (8)20 VIN to Analog Common: ±24 V; (9)REF OUT: Indefinite Short to Common; (10)Momentary Short to VCC; (11)Chip Temperature: 175℃; (12)Power Dissipation : 825 mW; (13)Lead Temperature (Soldering, 10 sec): +300℃; (14)Storage Temperature (Ceramic) : -65℃ to +150℃; (15)(Plastic): -25℃ to +100℃.
