Product Summary

The Intel PRIXP425ABD Product Line of Network Processors and IXC1100 Control Plane Processor are compliant with the ARM Version 5TE instruction-set architecture (ISA). The Intel PRIXP425ABD product line and IXC1100 control plane processors are designed with Intel 0.18-micron production semiconductor process technology. This process technology along with the compactness of the Intel XScale processor, the ability to simultaneously process up to three integrated network processing engines (NPEs), and numerous dedicated-function peripheral interfaces enables the PRIXP425ABD product line and IXC1100 control plane processors to operate over a wide range of low-cost networking applications, with industry-leading performance.

Parametrics

PRIXP425ABD absolute maximum ratings: (1)Ambient Air Temperature (Extended): -40℃ to 85℃; (2)Ambient Air Temperature (Commercial) 0℃ to 70℃; (3)Supply Voltage (Intel XScale processor) -0.3 V to 2.1V; (4)Supply Voltage I/O: -0.3 V to 3.6V; (5)Supply Voltage Oscillator (VCCOSC): -0.3 V to 2.1V; (6)Supply Voltage Oscillator (VCCOSCP): -0.3 V to 3.6V; (7)Supply Voltage PLL (VCCPLL1): -0.3 V to 2.1V; (8)Supply Voltage PLL (VCCPLL2): -0.3 V to 2.1V; (9)Voltage On Any I/O Ball: -0.3 V to 3.6V; (10)Storage Temperature: -55℃ to 125℃.

Features

PRIXP425ABD features: (1)Intel XScale Processor-Up to 533 MHz; (2)PCI Interface; (3)USB v1.1 Device Controller; (4)SDRAM Interface; (5)High-Speed UART; (6)Console UART; (7)Internal Bus Performance Monitoring Unit; (8)16 GPIOs; (9)Four Internal Timers; (10)Packaging- 492-pin PBGA; (11)Commercial/Extended Temperature.

Diagrams

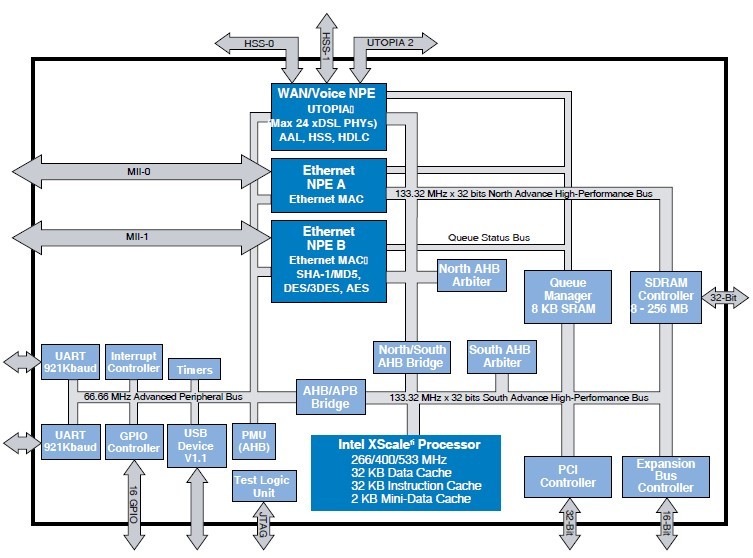

PRIXP425ABD Block Diagram
