Product Summary

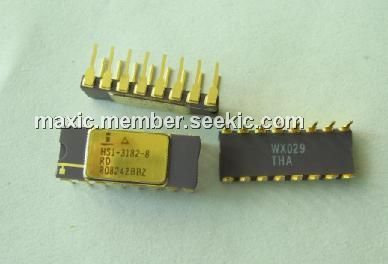

The HS1-3182-8 is a monolithic dielectrically isolated bipolar differential line driver designed to meet the specifications of ARINC 429. This Device is intended to be used with a companion chip, HS-3282 CMOS ARINC Bus Interface Circuit, which provides the data formatting and processor interface function. All logic inputs are TTL and CMOS compatible. In addition to the DATA (A) and DATA (B)inputs, there are also inputs for CLOCK and SYNC signals which are AND with the DATA inputs. This feature enhances system performance and allows the HS1-3182-8 to be used with devices other than the HS1-3182-8.

Parametrics

HS1-3182-8 absolute maximum ratings: (1)Voltage Between +V and -V Terminals: 40V; (2)V1: 7V; (3)VREF: 6V; (4)Logic Input Voltage: GND -0.3V to V1 +0.3V; (5)ESD Classification: Class 1; (6)Output Short Circuit Duration: (Note 1); (7)Output Over-Voltage Protection: (Note 2).

Features

HS1-3182-8 features: (1)RoHS/Pb-free Available for SBDIP Package (100% Gold Termination Finish); (2)TTL and CMOS Compatible Inputs; (3)Adjustable Rise and Fall Times via Two External Capacitors; (4)Programmable Output Differential Voltage via VREF Input; (5)Operates at Data Rates Up to 100k Bits/s; (6)Output Short Circuit Proof and Contains Overvoltage Protection; (7)Outputs are Inhibited (0V) If DATA (A) and DATA (B) Inputs are Both in the Logic One State; (8)DATA (A) and DATA (B) Signals are ANDd with Clock and Sync Signals; (9)Full Military Temperature Range.

Diagrams

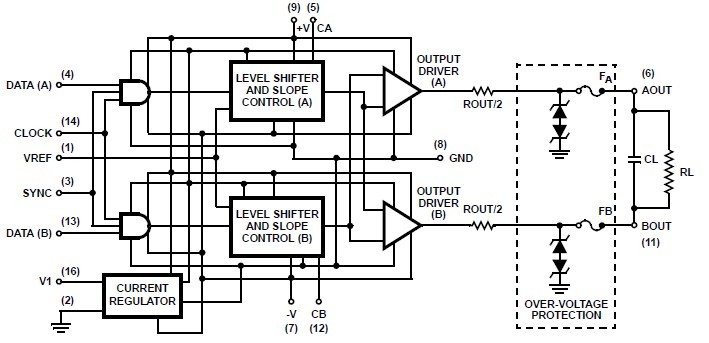

HS1-3182-8 block diagram
