Product Summary

The AD9953YSVZ is a direct digital synthesizer (DDS) featuring a 14-bit DAC operating up to 400 MSPS. The AD9953YSVZ uses advanced DDS technology, coupled with an internal high speed, high performance DAC to form a digitally programmable, complete high frequency synthesizer capable of generating a frequency-agile analog output sinusoidal waveform at up to 200 MHz. The AD9953YSVZ includes an integrated 1024 × 32 static RAM to support flexible frequency sweep capability in several modes. The AD9953YSVZ is designed to provide fast frequency hopping and fine tuning resolution (32-bit frequency tuning word). The frequency tuning and control words are loaded into the AD9953YSVZ via a serial I/O port. The AD9953YSVZ is specified to operate over the extended industrial temperature range of –40℃ to +105℃.

Parametrics

AD9953YSVZ absolute maximum ratings: (1)Maximum Junction Temperature: 150℃; (2)DVDD_I/O (Pin 43): 4V; (3)AVDD, DVDD: 2V; (4)Digital Input Voltage (DVDD_I/O = 3.3V): -0.7V to +5.25V; (5)Digital Input Voltage (DVDD_I/O = 1.8V): -0.7V to +2.2V; (6)Digital Output Current: 5mA; (7)Storage Temperature: -65℃ to +150℃; (8)Operating Temperature: -40℃ to +105℃; (9)Lead Temperature (10 sec Soldering): 300℃; (10)θJA: 38℃/W; (11)θJC: 15℃/W.

Features

AD9953YSVZ features: (1)400 MSPS internal clock speed; (2)Integrated 14-bit DAC; (3)32-bit tuning word; (4)Phase noise ≤ –120 dBc/Hz @ 1 kHz offset (DAC output); (5)Excellent dynamic performance; (6)>80 dB SFDR @ 160 MHz (±100 kHz offset) AOUT; (7)Serial I/O control; (8)1.8 V power supply; (9)Software and hardware controlled power-down; (10)48-lead TQFP/EP package; (11)Support for 5 V input levels on most digital inputs; (12)PLL REFCLK multiplier (4× to 20×); (13)Internal oscillator, can be driven by a single crystal; (14)Phase modulation capability; (15)Multichip synchronization.

Diagrams

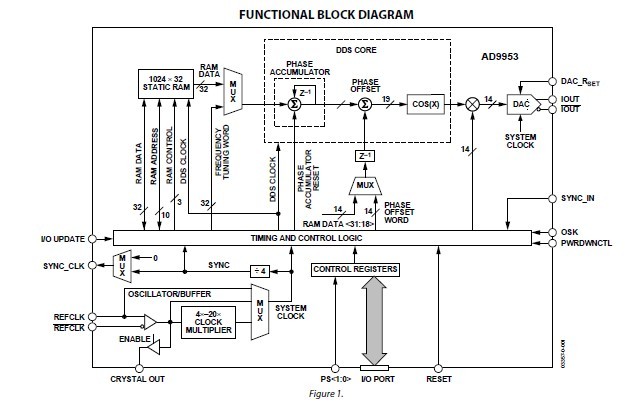

AD9953YSVZ FUNCTIONAL BLOCK DIAGRAM
