Product Summary

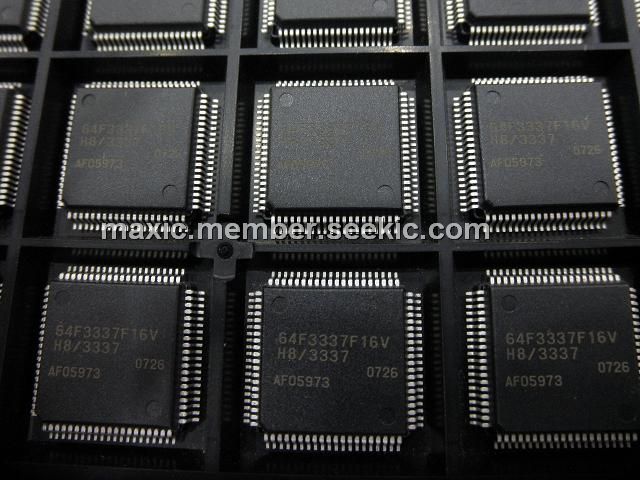

The HD64F3337YF16V is a high-performance single chip microcomputer that integrates peripheral functions necessary for system configuration with an H8/300 CPU featuring a 32-bit internal architecture as its core. On-chip peripheral functions include ROM, RAM, four kinds of timers, a serial communication interface (SCI), host interface (HIF), keyboard controller, D/A converter, A/D converter, and I/O ports, enabling the HD64F3337YF16V to be used as a microcontroller for embedding in high-speed control systems.

Parametrics

HD64F3337YF16V absolute maximum ratings: (1)Supply voltage, VCC: –0.3 to +7.0V; (2)Flash memory programming voltage, FVPP: –0.3 to +13.0V; (3)Programming voltage, VPP: –0.3 to +13.5V; (4)Input voltage Pins other than ports 7, MD1, Vin: –0.3 to VCC+0.3V; (5)Analog supply voltage, AVCC: –0.3 to +7.0V; (6)Analog input voltage, VAN: –0.3 to AVCC+0.3V; (7)Operating temperature Topr Regular specifications: –20 to +75℃; (8)Wide-range specifications: –40 to +85℃; (9)Storage temperature, Tstg: –55 to +125℃.

Features

HD64F3337YF16V features: (1)10-bit resolution; (2)Eight input channels; (3)High-speed conversion; (4)Two conversion modes; (5)Four 16-bit data registers; (6)Sample-and-hold function; (7)A/D conversion can be externally triggered; (8)A/D interrupt requested at end of conversion.

Diagrams

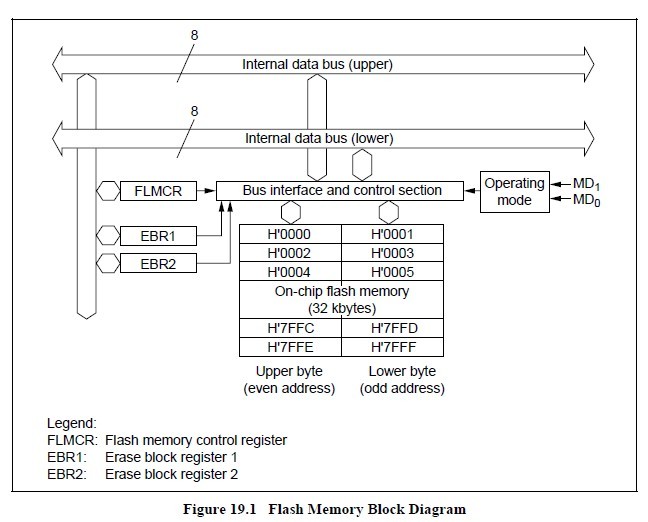

HD64F3337YF16V Flash Memory Block Diagram
