Product Summary
The MB90F546GSPF-GE1 with FULL-CAN and FLASH ROM is specially designed for automotive and industrial applications. The main features of MB90F546GSPF-GE1 are two on board CAN Interfaces, which conform to V2.0 Part A and Part B, supporting very flexible message buffer scheme and so offering more functions than a normal full CAN approach.
Parametrics
MB90F546GSPF-GE1 absolute maximum ratings: (1)Power supply voltage, VCC: VSS-0.3 to VSS+6.0V; (2)Power supply voltage, AVCC: VSS-0.3 to VSS+6.0V; (3)Power supply voltage, AVRH: VSS-0.3 to VSS+6.0V; (4)Power supply voltage, AVRL: VSS-0.3 to VSS+6.0V; (5)Input voltage, VI: VSS-0.3 to VSS+6.0V; (6)Output voltage, VO: VSS-0.3 to VSS+6.0V; (7)Maximum clamp current, ICLAMP: -2.0 to +2.0mA; (8)Operating temperature, TA: -40 +85℃; (9)Storage temperature, TSTG: -55 +150℃.
Features
MB90F546GSPF-GE1 features: (1)Instruction set to optimize controller applications; (2)Instruction set designed for high level language (C language) and multi-task operations; (3)Program patch function (for two address pointers); (4)Enhanced execution speed : 4-byte Instruction queue; (5)Enhanced interrupt function : 8 levels, 34 factors; (6)Automatic data transmission function independent of CPU operation; (7)Embedded ROM size and types; (8)Flash ROM; (9)Low-power consumption (stand-by) mode; (10)0.5 mm CMOS technology; (11)Extended I/O serial interface : 1 channel.

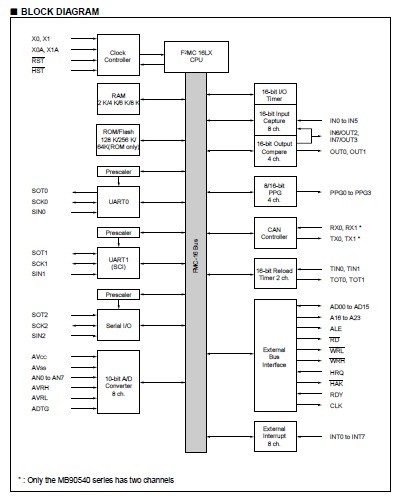

Diagrams
 |
