AD624AD

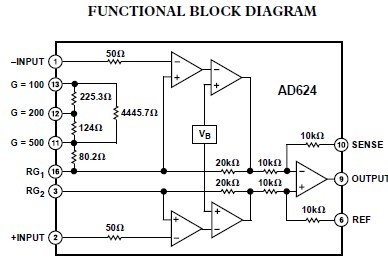

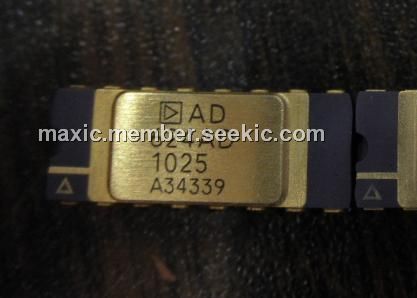

high precision, Instrumentation Amplifier, 25 MHz gain bandwidth, CDIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.00~15.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.00~15.00

PartNumber:: AD624AD

Brand:: Analog Devices - ADI | Pack: CDIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ma's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-10

From Other Seller

Part Number:AD624AD
US $10.00 - 15.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD624AD is a high precision, low noise, instrumentation amplifier designed primarily for use with low level transducers, including load cells, strain gauges and pressure transducers. An outstanding combination of low noise, high gain accuracy, low gain temperature coefficient and high linearity make the AD624AD ideal for use in high resolution data acquisition systems. In addition to these outstanding dc specifications, the AD624AD exhibits superior ac performance as well. A 25 MHz gain bandwidth product, 5 V/ms slew rate and 15 ms settling time permit the use of the AD624AD in high speed data acquisition applications. The AD624AD does not need any external components for pretrimmed gains of 1, 100, 200, 500 and 1000. Additional gains such as 250 and 333 can be programmed within one percent accuracy with external jumpers. A single external resistor can also be used to set the 624s gain to any value in the range of 1 to 10,000.

Parametrics

AD624AD absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Internal Power Dissipation: 420mW; (3)Input Voltage: ±VS; (4)Differential Input Voltage: ±VS; (5)Output Short Circuit Duration: Indefinite; (6)Storage Temperature Range: -65℃ to +150℃; (7)Operating Temperature Range: -25℃ to +85℃; (8)Lead Temperature (Soldering, 60 secs): +300℃.
