Product Summary

The XTR105U is a monolithic 4-20mA, two-wire current transmitter with two precision current sources. It provides complete current excitation for Platinum RTD temperature sensors and bridges, instrumentation amplifier, and current output circuitry on a single integrated circuit. Versatile linearization circuitry provides a 2nd-order correction to the RTD, typically achieving a 40:1 improvement in linearity. Instrumentation amplifier gain can be configured for a wide range of temperature or pressure measurements. Total unadjusted error of the complete current transmitter is low enough to permit use without adjustment in many applications. This includes zero output current drift, span drift and nonlinearity. The XTR105U operates on loop power supply voltages down to 7.5V.

Parametrics

XTR105U absolute maximum ratings: (1)Power Supply, V+ (referenced to IO pin): 40V; (2)Input Voltage, VIN, VIN (referenced to IO pin): 0V to V+; (3)Storage Temperature Range: -55℃ to +125℃; (4)Lead Temperature (soldering, 10s): +300℃; (5)Output Current Limit: Continuous; (6)Junction Temperature: +165℃.

Features

XTR105U features: (1)LOW UNADJUSTED ERROR; (2)TWO PRECISION CURRENT SOURCES 800μA EACH; (3)RTD OR BRIDGE EXCITATION; (4)LINEARIZATION; (5)TWO OR THREE-WIRE RTD OPERATION; (6)LOW OFFSET DRIFT: 0.4mV/℃; (7)LOW OUTPUT CURRENT NOISE: 30nAp-p; (8)HIGH PSR: 110dB min; (9)HIGH CMR: 86dB min; (10)WIDE SUPPLY RANGE: 7.5V TO 36V; (11)14-PIN DIP AND SO-14 SOIC PACKAGES.

Diagrams

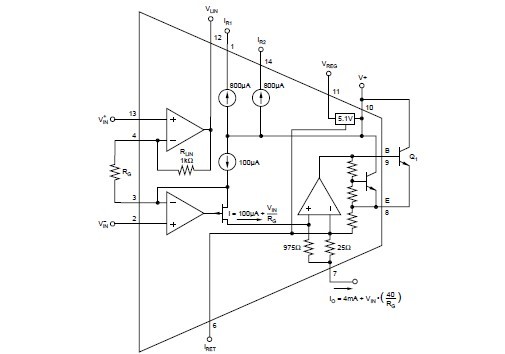

XTR105U block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

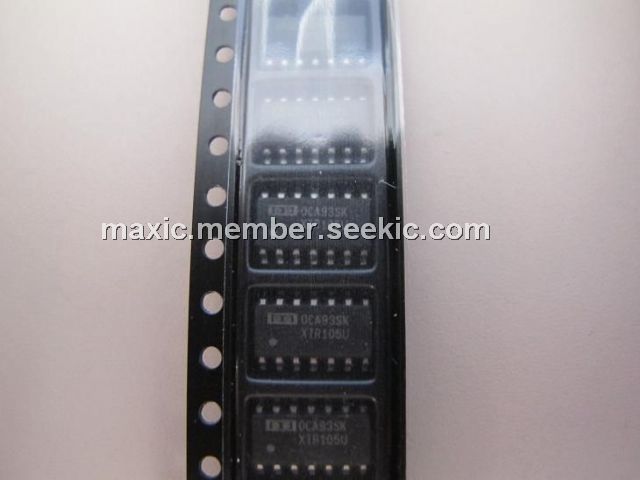

XTR105U
XTR105U

Texas Instruments

Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Sensor Exc & Lin

Data Sheet

0-1: $7.65
1-10: $6.97
10-25: $6.44
25-50: $6.22
XTR105U/2K5
XTR105U/2K5


IC 4-20 MA I-TRANSMITTER 14-SOIC

Data Sheet

Negotiable
XTR105UA
XTR105UA

Texas Instruments

Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Sensor Exc & Lin

Data Sheet

0-1: $7.49
1-10: $6.73
10-25: $5.99
25-50: $5.65
XTR105UA/2K5
XTR105UA/2K5

Texas Instruments

Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Sensor Exc & Lin

Data Sheet

0-2002: $3.10
2002-2500: $3.10
XTR105UA/2K5E4
XTR105UA/2K5E4

Texas Instruments

Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Sensor Exc & Lin

Data Sheet

0-2002: $3.10
2002-2500: $3.10
XTR105UAG4
XTR105UAG4

Texas Instruments

Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Sensor Exc & Lin

Data Sheet

0-1: $7.49
1-10: $6.73
10-25: $5.99
25-50: $5.65
XTR105UG4
XTR105UG4

Texas Instruments

Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Sensor Exc & Lin

Data Sheet

0-1: $7.65
1-10: $6.97
10-25: $6.44
25-50: $6.22
