Product Summary

The M30626FHPGP#U3C of single-chip microcomputer is built using the high performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. This single-chip microcomputer operate using sophisticated instructions featuring a high level of instruction efficiency.

Parametrics

M30626FHPGP#U3C absolute maximum ratings: (1)Supply Voltage VCC1=AVCC, VCC1, VCC2: -0.3 to 6.5V; (2)Supply Voltage VCC2, VCC2: -0.3 to VCC1+0.1V; (3)Analog Supply Voltage VCC1=AVCC, AVCC: -0.3 to 6.5V; (4)Power Dissipation -40℃<Topr≤85℃, Pd: 300mW; (5)Operating Ambient Temperature, Topr: -40 to 85℃; (6)Flash Program Erase: 0 to 60; (7)Storage Temperature, Tstg: -65 to 150℃.

Features

M30626FHPGP#U3C features: (1)Low Power Dissipation Mode Wait Mode Release Time; (2)Brown-out Detection Reset (Hardware Reset 2) Release Wait Time; (3)Low Voltage Detection Circuit Operation Start Time.

Diagrams

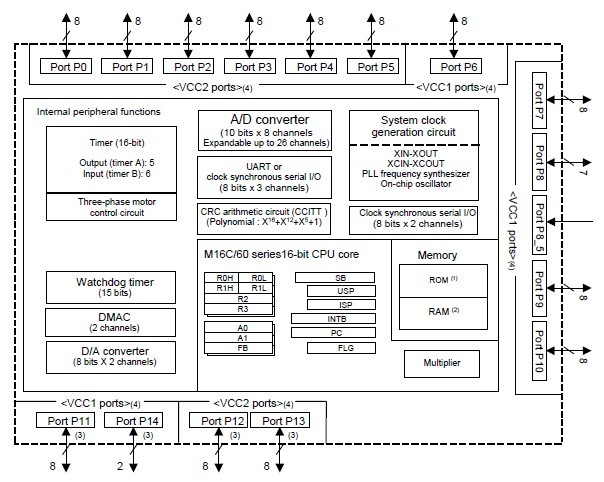

M30626FHPGP#U3C Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

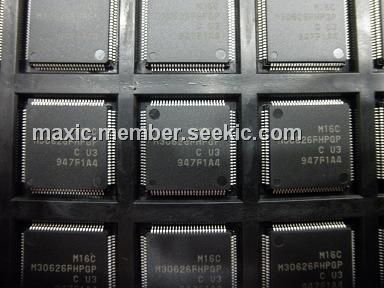

M30626FHPGP#U3C
M30626FHPGP#U3C


IC M16C MCU FLASH 384K 100LQFP

Data Sheet

0-1: $13.93
1-10: $12.89
10-100: $10.97
100-250: $10.10
250-500: $9.58
500-1000: $9.06
1000-2500: $8.78
2500-5000: $8.53
5000-10000: $8.36
